Hope530, 160kW 380Vac, Hope530G160T4L
Mã sản phẩm: Hope530G160T4L
1 VNĐ
Biến tần Hope530, 160kW 380Vac, Hope530G160T4L
Biến tần Hope530, 160kW 380Vac, Hope530G160T4L
| Items | Descriptions | |
| Input | Rated voltage, frequency | 3-phase: 380V, 50Hz/60Hz; 3-phase: 660V, 50Hz/60Hz |
| Allowable range | Voltage fluctuating range: -15%~10%; voltage tolerance: <3%; frequency: 47Hz~63Hz | |
| Output | Output voltage | Three-phase, 0V~input voltage, tolerance<5% |
| Output frequency range | VF: 0.00 – 650.00Hz; Vector: 0.00 – 200.00Hz | |
| Performance | Overload capacity | 150% of rated current for 60s, 180% of rated current 15s, 200% of rated current 2s |
| Frequency resolution | Digital setting: 0.01Hz; simulation setting:<2% of the maximum frequency | |
| Output frequency accuracy | Analog setting: <±2% of the maximum frequency; digital setting: 0.01Hz | |
| Input/output | Analog input AI | 2 channels AI: 0/4~20mA, 0-10V |
| Analog output AO | 2 channels AO: 0/4~20mA, 0-10V | |
| Digital input | 5 digital inputs, NPN / PNP | |
| Digital output | 2 digital output, 2 relay output | |
| PFI / PFO | 1 channel pulse frequency input and output | |
| Communication | Built-in RS485 interface with Modbus RTU, optional ModbusTCP, Profibus, Profinet | |
| Control functions | Motor control mode | VF, VF+PG, SVC, VC+PG |
| Run command channel | Operation panel setting, control terminal setting, communication setting | |
| Frequency setting channel | Operation panel, communication, UP/DOWN regulated value, AI, PID, multi-step speed, PFI, logic | |
| DC braking | Braking time: 0.0s~60.0s, braking current: 0.0%~100.0% of rated current | |
| Acceleration & deceleration | Linear, S curve ACC/DEC | |
| Jog | Jogging frequency range: 0.10Hz～50.00Hz | |
| AVR | Automatic voltage regulation | |
| Automatic carrier frequency | Automatically regulate carrier frequency according to load characteristic and environment temperature | |
| Droop control | Suitable for multi-motor drive control | |
| Multistep speed method | 48 steps | |
| Multi-modes PLC | 8 sets PLC modes, max. 48 steps | |
| Position control | Zero-speed position lock, position control | |
| Logic unit | Comparator, logic unit, trigger, arithmetic unit, | |
| Others | Tracking start, stall prevention, oscillation suppression, accurate dead zone compensation functions | |
| Environment | Protection | Over-current, over-voltage, under-voltage, phase loss, output interphase short circuit, overheat, motor overload, external failure, lost connection of analog input, stall prevention, etc. |
| Altitude | With altitude below 1000m, derate >1000m | |
| Operating | -10~+40℃ / 20~90%RH, without condensation water drop | |
| Storage temperature | -20~+60℃ | |
| Vibration | <5.9m/s2 (0.6g) | |
| Structure | Degree of protection | IP20 |
| Cooling mode | Force-air cooling |

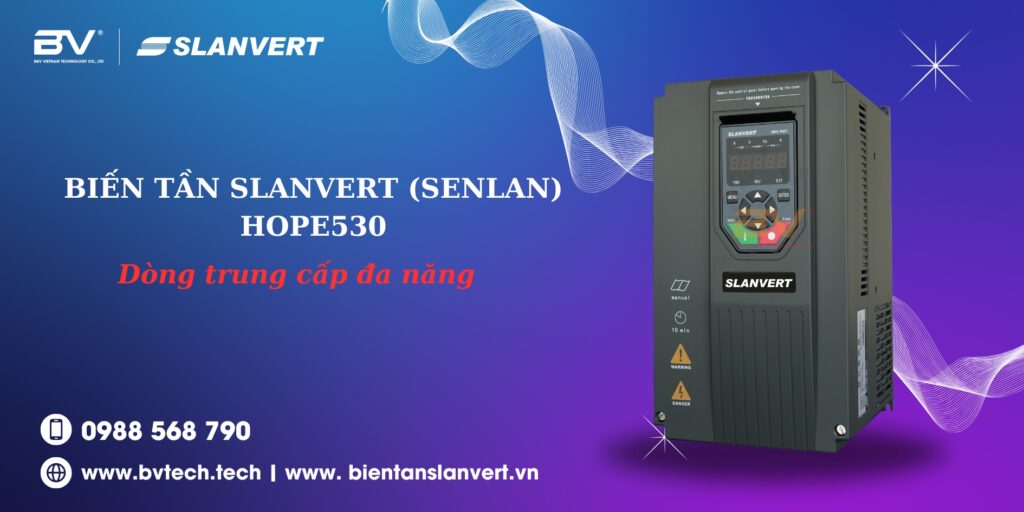

Biến tần Hope530, 160kW 380Vac, Hope530G160T4L
Hope530 high-performance vector control inverter
The Hope530 series inverter is a new generation of low-noise, high-performance and multi-function inverter independently developed by Hope Senlan Science & Technology Holding Co., Ltd. It adopts the rotor-magnetic-field-oriented vector control mode to achieve high torque of motor, high precision, wide range speed regulation, high reliability and powerful functions. It is widely used in metallurgy, petroleum, chemical industry, power industry, building materials, coal, medicine, food, papermaking, plastic, textile industry, printing & dyeing, lifting, washing, cable, packing, machinery, ceramics, water supply, centrifuge, conveyor, dehydrator, wastewater treatment, heating & ventilating industry, as well as drawbench, agitator, extruder, winding machine, compressor, fan pumps, grinding miller, conveyor, hoister, centrifuge and so on.
