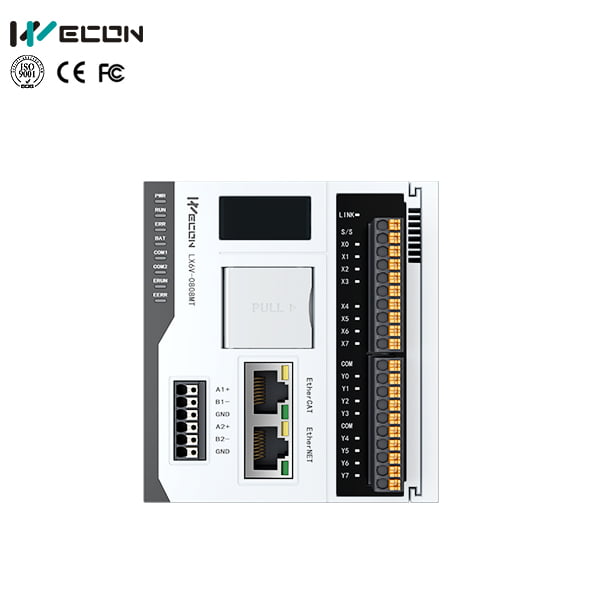

Wecon 16 I/O PLC : LX6V-0808MT
- Supports EtherCAT and USB TYPE-C
- Supports IEC61131-3 LD programming mode, free-tag protocol, faster and more efficient communication
- 5MB large program capacity
- 512KB latched capacity
- 100KB register capacity
- 5MB free tag capacity
LX6V Model | I/O | Output Type | Pulse Counter | E-CAM | Pulse Output | RS485 | BD Board | Module | Power Supply | Ethernet | EtherCAT | Axis |
LX6V-0808MT-DB | 08/08 | Transistor | 4 | YES | 4 | 2 | N/A | YES | DC | YES | YES | 16 |
LX6V-0808MT-DD | 08/08 | Transistor | 4 | YES | 4 | 2 | N/A | YES | DC | YES | YES | 64 |
LX6V-0808MT-DE | 08/08 | Transistor | 4 | YES | 4 | 2 | N/A | YES | DC | YES | YES | 128 |
Item | LX6V-0808MT |
Running Mode | Cycle Scan / Interrupt |
Programming | Instruction table / ladder diagram / FB / FC |
Total Instructions | Basic instruction: 29 / Application instruction: 170 |
Execute time | Basic instruction 0.01-0.02μs |
System EMMC | 5M |
Download/ Monitoring | Programming cable (Port) |
EtherNET | |
USB TYPE-C | |
High Speed Pulse Output | Transistor type 4 channels/200KHz |
High speed counter interrupt | 100 channels |
Timer Interrupt | 100 channels, support 0.1ms interrupt |
External input interrupt | X0-X7 supports both rising and falling edges |
High Speed Input Single Phase | 4 channels 150 KHz |
High Speed Input AB Phase | 4 channels 100K Hz, supports 2 or 4 frequency multiplication |
Power-down save | Adjusted by software |
Filter | For all the input terminals |
Serial Port | RS485, RS485 |
Temperature | Working Temperature:0 ~ 55℃ / Storage Temperature:-20 ~ 70℃ |
Humidity | 35~ 85%RH(Without condensation) |
Shock Resistance | JISC0040 Standard |
Influence Immunity | Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P , pulse width 10us, period 0.3 s, edge time 5ns , duration 1min. |
TF | Support |
ETHERNET | 1000M Ethernet |
ETHERCAT | Up to 128 servo axis |
