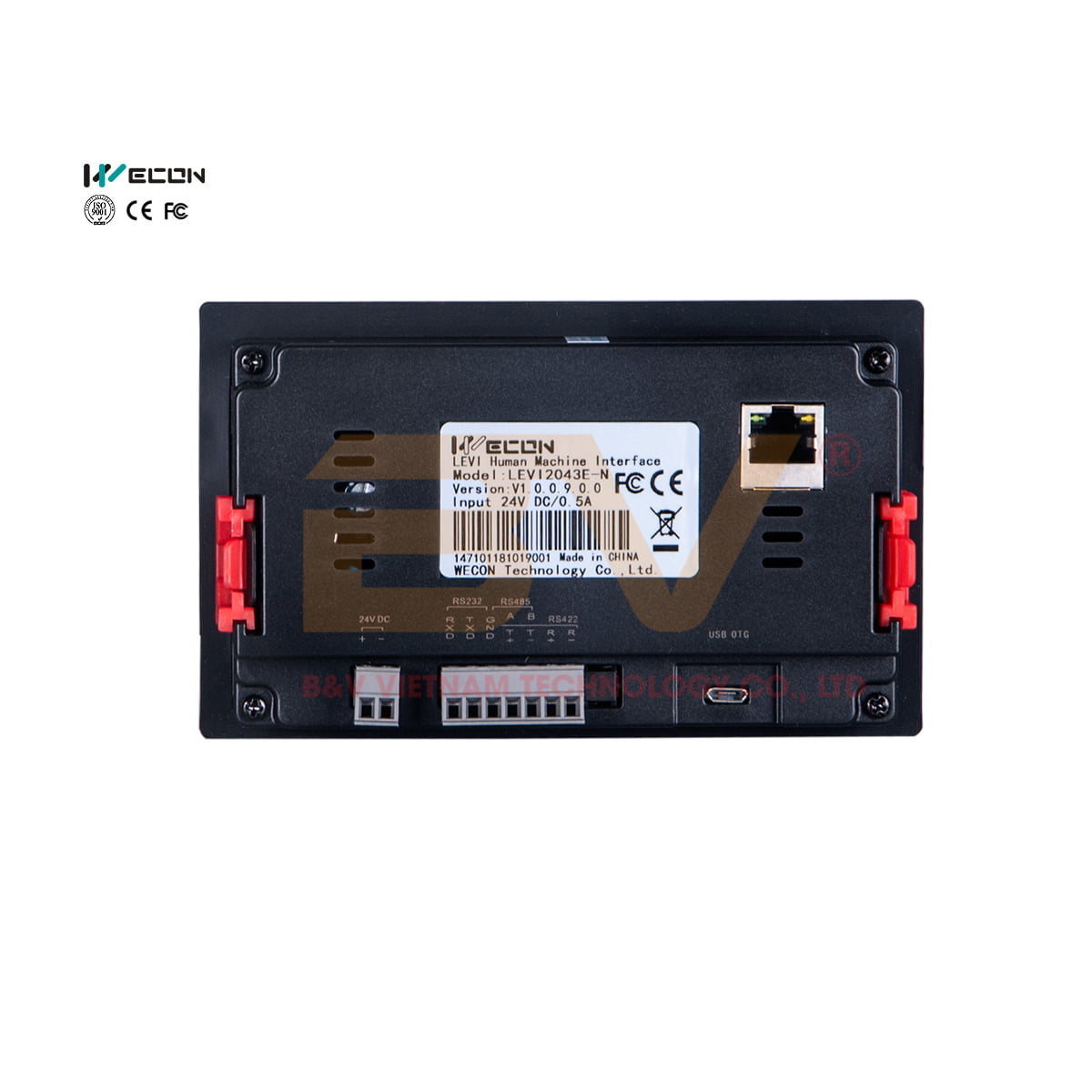

Wecon 4.3 inch UL Approved HMI: LEVI2043E-U
Model | LEVI2043E-U | ||
General | Screen Size | 4.3 Inch | |
Resolution | 480*272 | ||
Colors | 16,000k colors | ||
Brightness | 400cd/m2 | ||
Backlight Type | LED | ||
Touch Screen | High procision four-wire resistive | ||
Backlight Life | 5,0000 hours | ||
Time | |||
CPU | 32-bits 300MHz RISC | ||
Storage | 128M FLASH | ||
USB Port | Micro USB | ||
SD card | N/A | ||
COM | COM1 | RS422/RS485 | |
COM2 | RS232 | ||
Power | Power | <5w | |
Power Supply | DC 24V ( 12~28V DC ) | ||
Allowed Power Fail | <5ms | ||
Insulation Resistance | >20MΩ 500V DC | ||
Withstand Voltage | 500V AC < 1 minute | ||
Dimension | Shell | ABS,Black | |
Dimension (mm) | 142.0W*86.0H*30.3D | ||
Mounting size (mm) | 131.0W*78.0H | ||
Net/Gross (KG) | 0.19/0.30 | ||
Operate Environment | Temperature | Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃ | |
Humidity | 10~85%RH(Non-condensing) | ||
Seismic Resistance | 10~25 Hz ( X,Y,Z direction 2G/30 minutes) | ||
Cooling | Air cooling | ||
Extension | Ethernet | YES | |
Protection | IP65 ( Front panel ) | ||
UL Certification | cULus Listed | ||
FCC Certification | FCC Class A |
