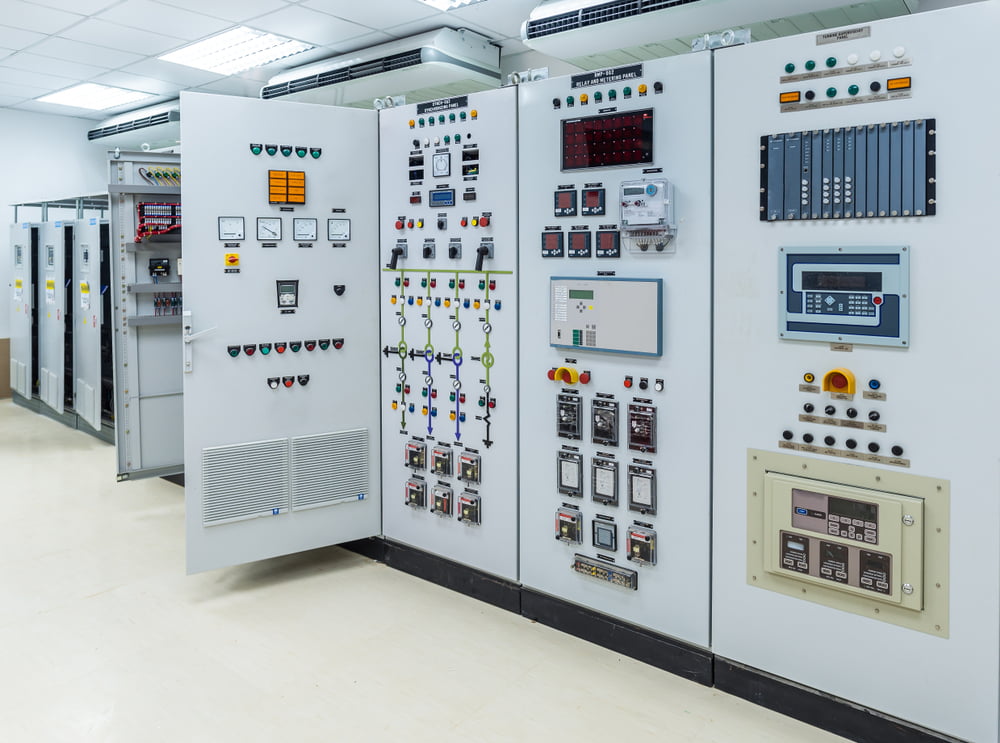

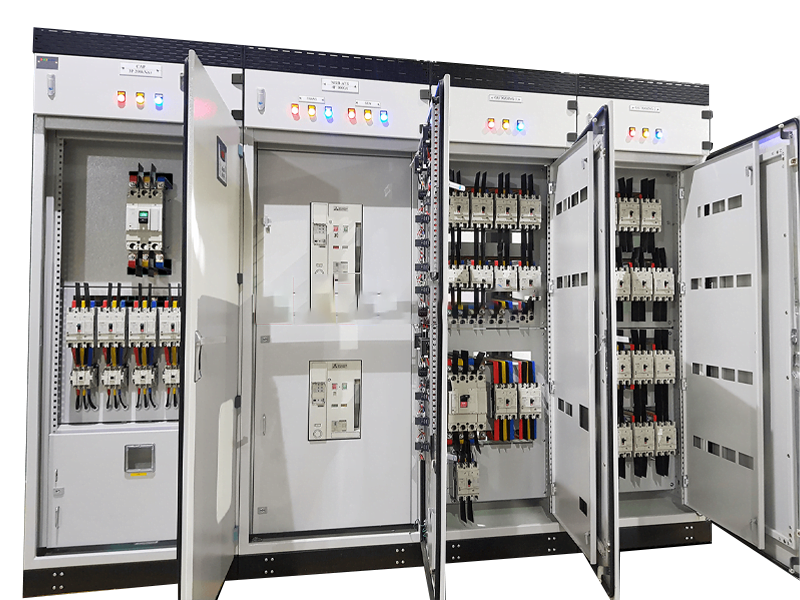

Tủ điện chuyển nguồn tự động ATS
Automatic Transfer Switch panel is system that switch the power supply from multi power source canbe transformers,Generators or UPS supply, with associated mechanical and electrical interlock between ACB or MCCB each other to ensure safety and prevent from incorrect operation,using the Siemens/Schneider/ABB/Mitsubishi controller.
Standards | IEC 61439-1&2 |
Degrees of Protection | IP4X to IP55 |
Rate insulation voltage (Ui) | 1000V |
Rate operating voltage (Ue) | 415/690 V AC |
Rate frequency (F) | 50/60 Hz |
Rate impulse voltage (Uimp) | 8kV |
Form | 1 to 4b |
Rate current (In) | 6300A |
Maximum rated current of main busbar le (A) | 6300A |
Short circuit withstand current ICW (kA/1s) | Up to 65kA/1s |
Dimensions | Height H (1800/2000/2200) Width W (600,800,900,1000,1200) Depth D (600/800/1000/1250) |
Sheet Metal thickness | 1.5mm to 2.2mm |
Sureface treatment Enclosure | Powder coated RAL 7032, 7035 |
