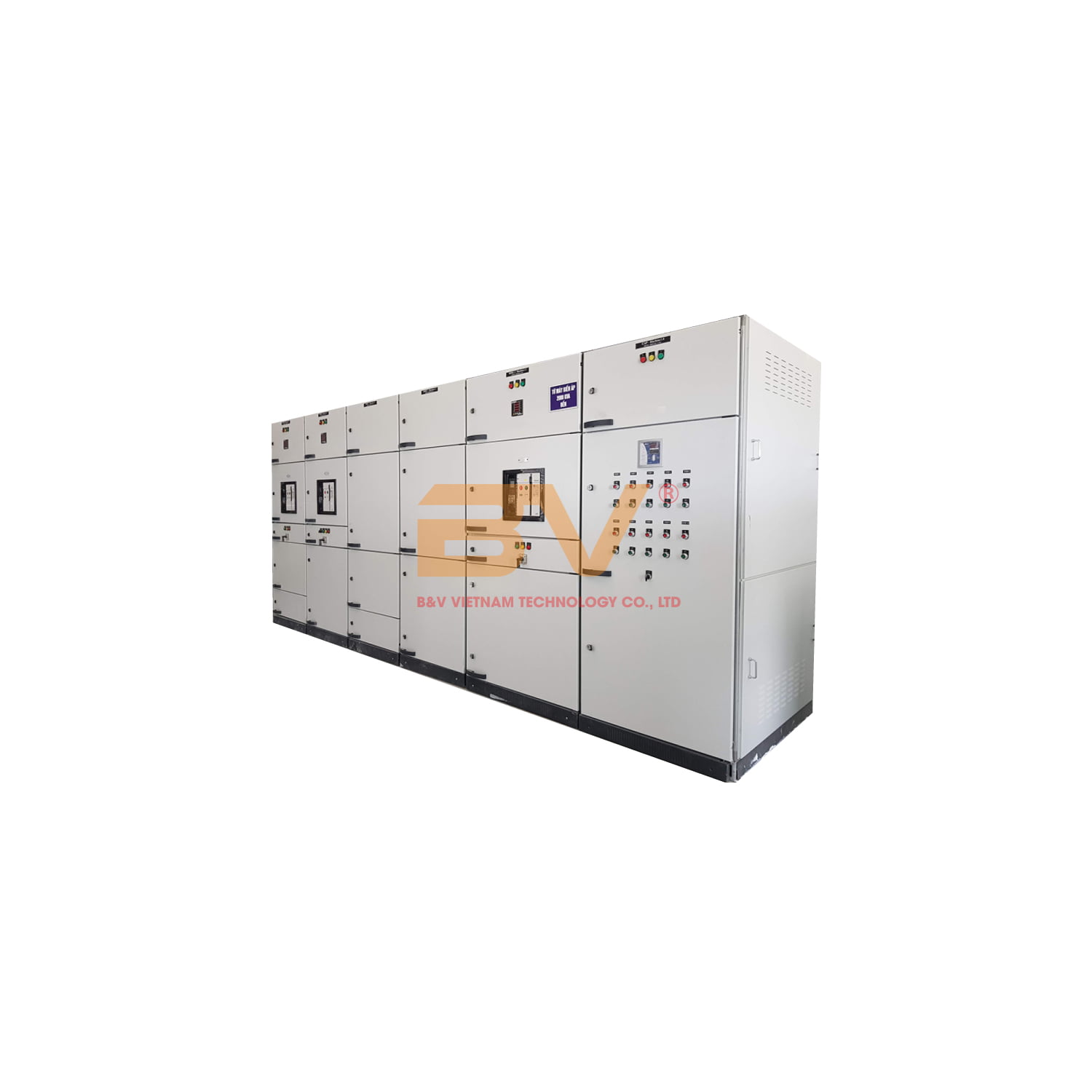

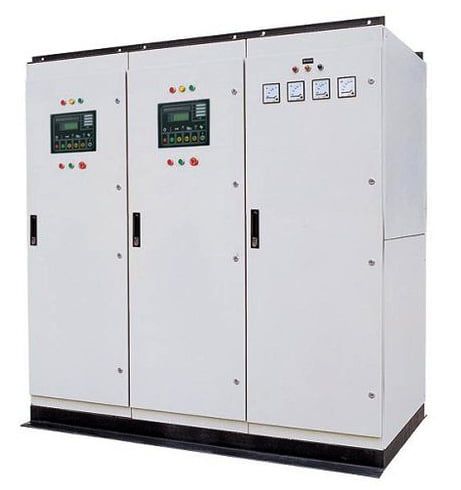

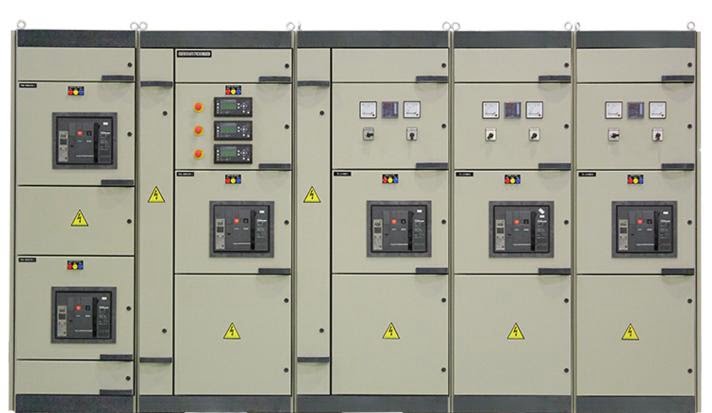

Tủ điện hòa đồng bộ
Synchronizing panel is responsible for synchronizing multiple generators in case the electric grid goes wrong, preventive generator will automatically start and synchronizing with each other. In addition, the system also monitoring the load and the decision to run the number of generator dependon load demand.
Also, if required, our synchronizing panel can still sync generator with power grid.Show clearly condition activities and incidents situation with LCD and LED, easy for user. There are 3 modes of operation OFF, AUTO, MAN ensuring flexibility in operation, nspection and maintenance
Standards | IEC 61439-1&2 |
Degrees of Protection | IP4X to IP55 |
Rate insulation voltage (Ui) | 1000V |
Rate operating voltage (Ue) | 415/690 V AC |
Rate frequency (F) | 50/60 Hz |
Rate impulse voltage (Uimp) | 8kV |
Form | 1 to 4b |
Rate current (In) | 6300A |
Maximum rated current of main busbar le (A) | 6300A |
Short circuit withstand current ICW (kA/1s) | Up to 65kA/1s |
Dimensions | Height H (1800/2000/2200) Width W (600,800,900,1000,1200) Depth D (600/800/1000/1250) |
Sheet Metal thickness | 1.5mm to 2.2mm |
Sureface treatment Enclosure | Powder coated RAL 7032, 7035 |
