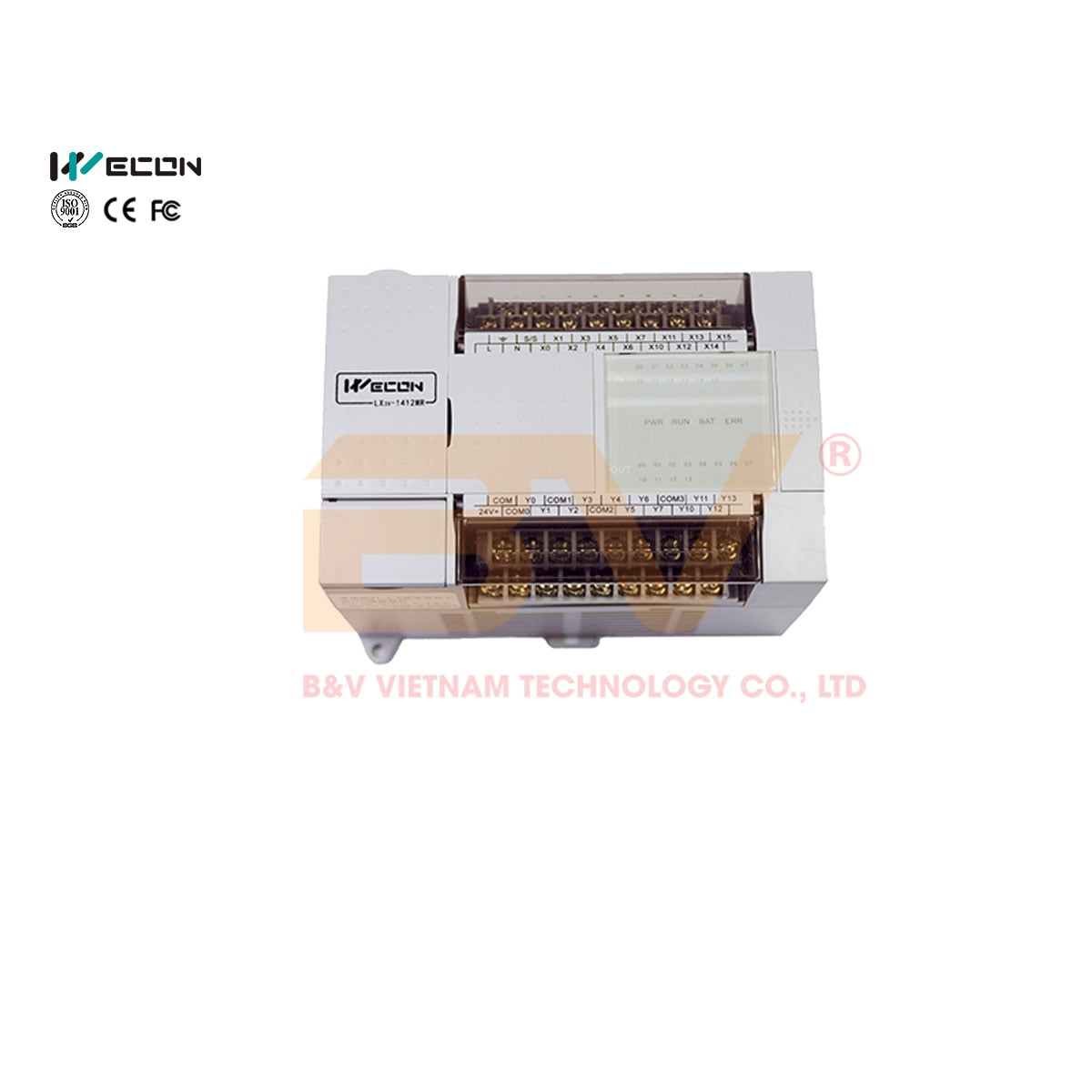

Wecon 24 I/O PLC : LX3VP-1212MR 2
Wecon 24 I/O PLC : LX3VP-1212MR 3

Wecon 24 I/O PLC : LX3VP-1212MR

Mã sản phẩm: LX3VP-1212MR
Liên hệ

Wecon 24 I/O PLC : LX3VP-1212MR



Liên hệ tư vấn Liên hệ Zalo

Wecon 24 I/O PLC : LX3VP-1212MR

‍◇ Power supply:A: AC100-240V power, D:DC24V power. 20W rated power
◇ IO: 12xDI/12xDO(Relay-type)
◇ Port:RS422, RS485, 1 BD board supported.
◇ Protocol:  2N NO PROTOCOL, LX3VP PROTOCOL
◇ Support 64K-step ladder.
◇ Support N:N PLC network up to 8 PLCs;
◇ T50~T191 can be changed to 1ms timers by M8028

Wecon 24 I/O PLC : LX3VP-1212MR 4

General

LX3V Series

LX3VP Series

LX3VE/3VM Series

Running ModeRound Scan/InterruptRound Scan/ Interrupt
ProgrammingInstruction List/LadderInstruction List / Ladder
Total InstructionsBasic Instructions: 27/Applied Instruction: 136+2 Basic Instructions: 27 /Applied Instruction: 136+2140        140
Execute TimeBasic Instructions: 0.06us /Applied Instruction: 1~10usBasic Instructions: 0.06us /Applied Instruction: 1~10us
System Storage16k16K64k64K32k32K
Download / MonitorSerial Programming Cable/ Mini USBSerial Programming Cable/ Mini USB
High Speed Pulse OutputTransistor Type: 2 Channels(4 channels optional) / Relay N/A(2 channels optional)Transistor : 2 Channels(4 channels optional) / Relay N/A(2 channels optional)
External Interrupt6 Channels6 Channels
Timer Interrupt3 Channels
Holding AddressesAdjustable
StorageFLASH
FilterFor all X input terminals
Serial  PortCOM1:RS422 or RS485
COM2:RS485
TemperatureOperating Temperature：0 ~ 55℃/Storage Temperature：0 ~ 70℃
Humidity35~85%RH (Without condensation)
Shock ResistanceJIS C0040 Standard
Noise ImmunityNoise Voltage:1000Vp-p Pulse; Width:1us;  Frequency:30-100Hz (Noise Simulator)

Output

ItemRelay OutputTransistor Output
Output Type—NPN
Input Power SupplyDC 24VDC 24V
Output Circuit<AC 250V;DC 30VDC 5~30V
COM Port Current—<0.1mA(DC 30V)
InsulationMechanisticOptical Coupling
Leak Current—0.1mA/DC 30V
Min.Load— DC 5V 2mA
 Resistive2A point 8A COM port0.5A point 0.8A COM port 0.3A HSPO point
 Inductive80VA12W/DC 24V7.2WHSPO point
 Max.LoadGeneralGeneral100W0.9W/DC 24V
 ON<10ms<0.2ms
Response TimeOFF(Pulse out put terminal：<5us)

AC Power Supply

 ItemLX3V(P)0806M/1208M/1212M/1412MLX3V(P)1616M/2416M/3624M
VoltageAC100~240V 50~60Hz
Power Outage Time10ms
Rush Current<15A 5ms/AC 100V; <30A 5ms/AC 200V
Power Fuse250V 1A250V 3.15A
Power Consumption<35w<60w
Power OutputDC 24V 850mADC 24V 700mA

DC Power Supply

ItemLX3V/LX3VP
Power SupplyDC 24V±10%
Power Outage Time10ms
Power Fuse250V 3.15A
Rush Current<15A 1ms/DC 24V
Power Consumption<30w

Wecon 24 I/O PLC : LX3VP-1212MR

◇ Power supply:A: AC100-240V power, D:DC24V power. 20W rated power
◇ IO: 12xDI/12xDO(Relay-type)
◇ Port:RS422, RS485, 1 BD board supported.
◇ Protocol:  2N NO PROTOCOL, LX3VP PROTOCOL
◇ Support 64K-step ladder.
◇ Support N:N PLC network up to 8 PLCs;
◇ T50~T191 can be changed to 1ms timers by M8028
